CHIBIN MACHINE CO., LTD.
CHIBIN Machine Co., Ltd. was established in 1980, has more than 35-year experience in producing, designing, improving and developing the high quality products. Our products are awarded the international certificate ISO 9001:2000 and ISO 9001:2008.
Our aims:
Our standard products are covering metric system and imperial units. There are pneumatic and hydraulic fittings, instrument fittings (e.g., tube fittings, compression fittings, rapid-pneumatic fittings, push-in fittings, hydraulic hose fittings, joints, pipe fittings), various quick couplings (e.g., single shut-off, double shut-off, straight through, camlock), various valves (e.g., check valves, ball valves, needle valves) and nozzles.
Our aims:
- Providing various series of standard fittings with reasonable price
- Developing and producing custom-made fittings
- Providing consultation before purchasing and quality guarantee after order
- Well-stocked for reducing inventory
- Providing solutions for special demands
Our standard products are covering metric system and imperial units. There are pneumatic and hydraulic fittings, instrument fittings (e.g., tube fittings, compression fittings, rapid-pneumatic fittings, push-in fittings, hydraulic hose fittings, joints, pipe fittings), various quick couplings (e.g., single shut-off, double shut-off, straight through, camlock), various valves (e.g., check valves, ball valves, needle valves) and nozzles.
Brief Introduction of the Products
-
RAPID PNEUMATIC FITTINGS
1. The material is stainless steel 304
2. Working Pressure：20 kg/cm2.
3. Bears acid and alkali、High temperature resistant.
4. Connects with different thermoplastic hose, like Nylon、PR and PU hose, etc.
5. Coordinates various types specification different caliber 4ψ ~ 6ψ, the size diversification.
6. Keeps in stock sufficiently, has other material qualities to serve in addition. 7. Available for liquid and fluid system
(water, chemical resistant, etc.)instrument
piping Engineering and gas flow piping system.
8. Be applied to the food, chemical, petrochemical, water treatment, medical, pneumatic andagriculture industry. -
NYLON QUICK COUPLING
1. Light Weight、Shatterproof、Chemical Resistant.
2. Working Pressure：10 kg/cm2.
3. For Various Environments.
4. Non-oxidized、Good Ductility、Long Using time.
5. Conform to NITTO specification, interchangeable, without material restrictions.
6. Available for liquid and fluid system (water, light crude oil, chemical resistant, etc.) and gas flow piping system.
7. Be applied to the food, chemical, petrochemical, water treatment, medical, pneumatic and agriculture industry. -

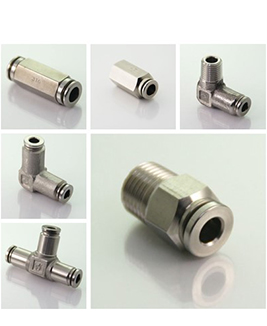

STAINLESS STEEL PUSH-IN PNEUMATIC FITTINGS
1. The material is stainless steel 304 (include module).
2. Working Pressure：7 ~ 10 kg/cm2.
3. Bears acid and alkali、High temperature resistant.
4. Connects with different thermoplastic hose, like Nylon、PR and PU hose, etc.
5. Coordinates various types specification different caliber 4ψ ~ 6ψ, the size diversification.
6. Keeps in stock sufficiently, has other material qualities to serve in addition.
7. Available for liquid and fluid system (water, chemical resistant, etc.)、instrument、piping Engineering and gas flow piping system.
8. Be applied to the food, chemical, petrochemical, water treatment, medical, pneumatic and agriculture industry.
